Watermarks



A Watermark is a visual tag that offers a quick identifying mark on a device. A watermark is defined by a Short label or a Text string and a watermark style.

NetZoom watermarks come in two varieties: Pre-defined watermarks, which can be an image or a text string; and custom watermarks, which can only be text as a result of property values or an expression.





Adding a Pre-Defined Watermark to a Device

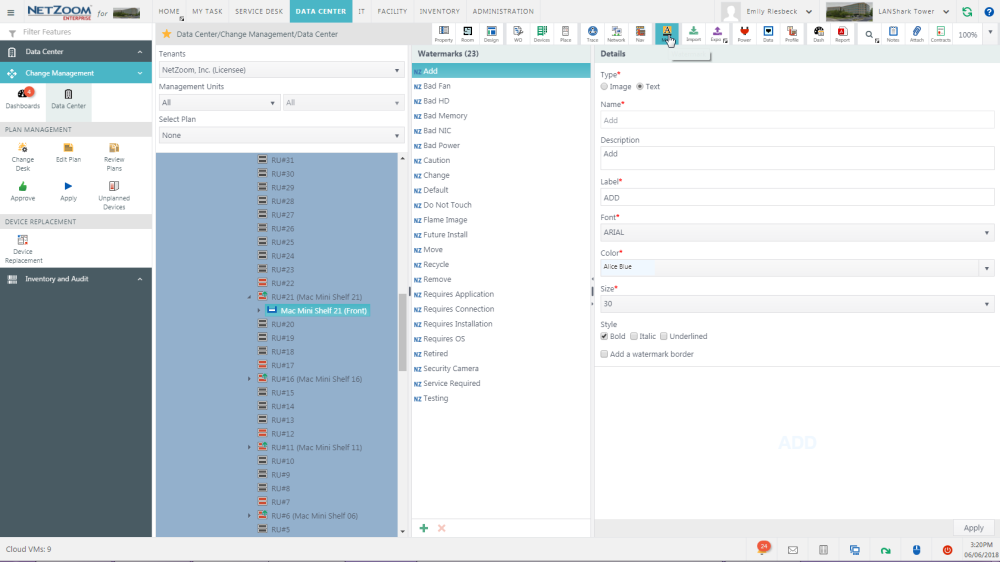

1. To add a pre-defined watermark to a device, select the device in the Infrastructure Explorer and click QA: Mark. This quick action will list available watermarks in the Watermarks pane.

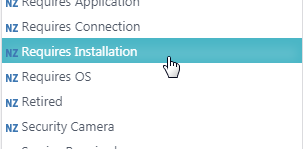

2. Select the watermark you want to apply to the device in the Watermarks pane.

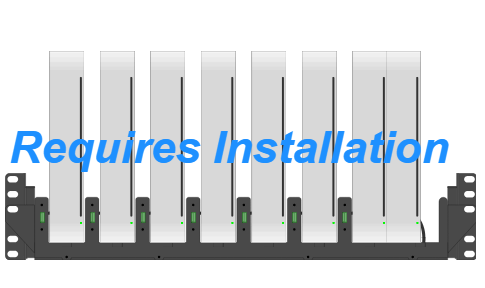

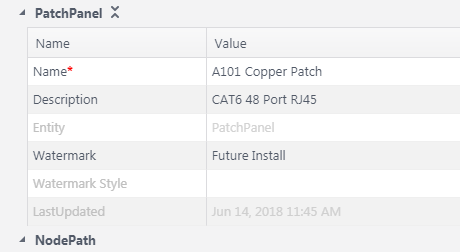

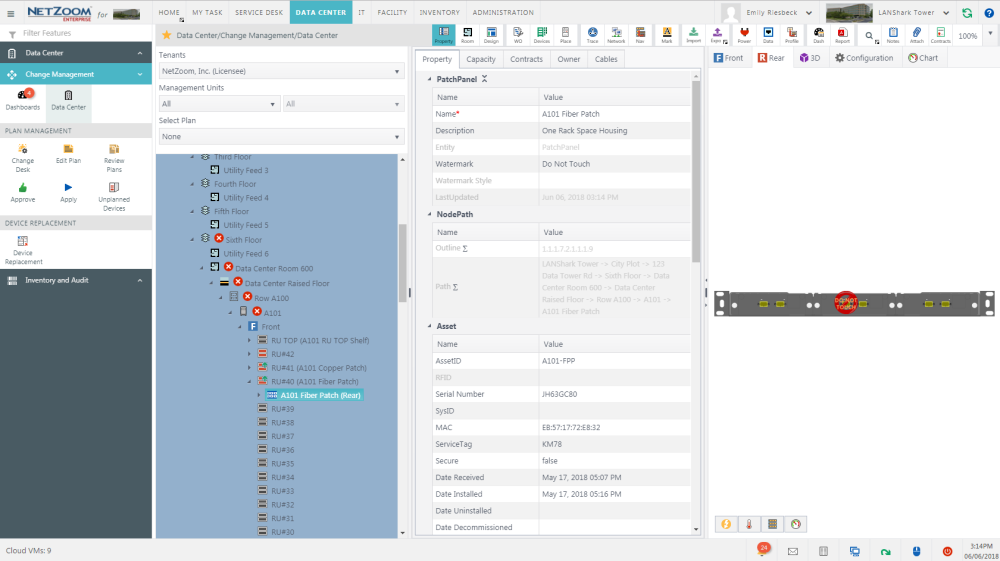

3. Click the [APPLY] button. The watermark will be applied and you will notice the watermark appear in the device view. When a watermark is applied, it will appear at the top of the Watermarks pane in red. You will also notice that the Watermark and Watermark Style properties have changed to match the selected watermark.





4. You can remove a watermark by selecting it and clicking the [REMOVE] button.
