Slots and Ports

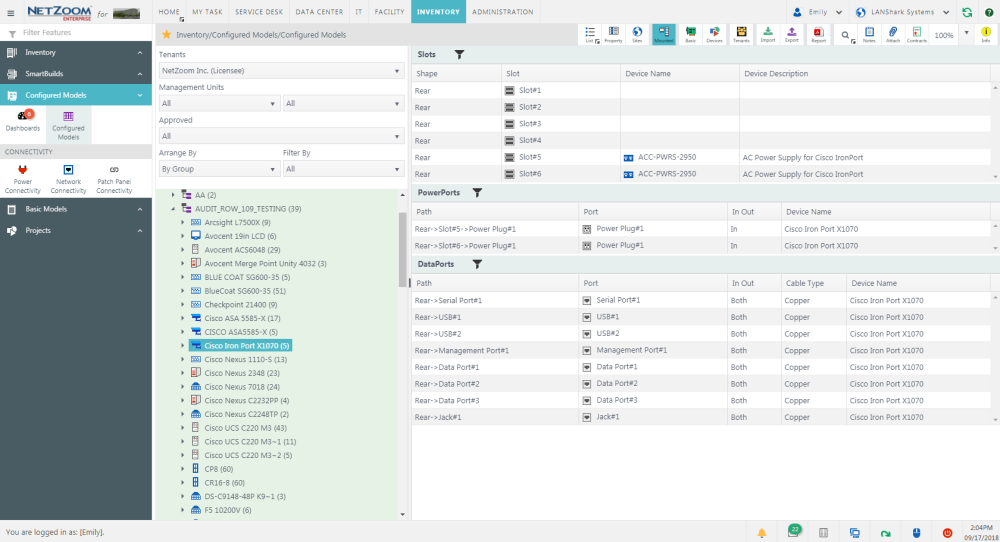

The Slots and Ports quick action displays all slots and ports of a selected device in list view. These include the shape, port name, whether it is an in or out port, the cable type and the port’s device. The columns can be re-arranged as needed.





Creating a Filter

Filters can be created to limit the Slots and Ports quick action

1. Click to open the filter pane.

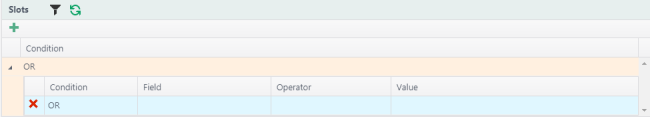

2. Click . A blank condition form will appear in the filter pane.
3. Enter the condition, field, operator, and value.

• Logic: includes the logical operators and & or.
• Field: determines what field the criteria will search in.
• Operator: includes relationship operators such as equal to and greater than.
• Value: determines what value the criteria will search for.





4. Click [filter icon] to apply the filter.
