Getting Started

Access the Cloud Library

New to the latest version of NetZoom is the personalized NetZoom Cloud Library which can be accessed by visiting https://service.netzoom.com There, users can request shapes and add manufacturers, product lines and devices to My Library. When the personal device library has been created, results and shapes displayed in the NetZoom Visio Add-in will be automatically filtered to only display devices from My Library. For example, if all the devices you own are from three manufacturers, you can add those manufacturers to My Library and filter out all other manufacturers in the application.



About NetZoom Shapes

The Best Shapes for Network Designs and Diagrams

NetZoom shapes and stencils are used to create sophisticated, detailed and easy-to-understand network designs, diagrams, presentations and technical illustrations.

• Scalable Vector Graphics

Shapes are made with vector graphics, letting you scale them to any size while maintaining high quality and graphical resolution.

• True Look-and-Feel

Shapes match the look, feel and behavior of their real-life counterparts, down to port/slot locations, colors and logos.

• Made to Manufacturer Specifications

Each shape has been painstakingly created to match manufacturer specifications exactly, in all respects, including the look-and-feel, dimensions, port/slot connections and operational properties.

• Multiple Views

Many shapes are offered in multiple views, including front, rear, three-dimensional and other styles for easy configuration and maximum versatility.

• Built-in Connection Points

Shapes have been designed with connection points pre-created on each of the power and network ports to facilitate creating network diagrams and wiring maps.

• Snap Together Configuration

Using NetZoom Visio Stencils for rack or chassis configuration is a Snap. NetZoom shapes are designed so that when used in Microsoft Visio, the cards snap into the chassis so you can build your chassis as installed. The same is true for rack mounted devices which Snap into the rack units of racks and enclosures for easy to create rack elevations.



Setting Up Your Shape Library

NetZoom’s complete shape library has shapes from thousands of manufacturers. Visit https://service.netzoom.com to select the devices you want to use in NetZoom Visio Add-in or to download NetZoom Visio Stencils directly.



Launching the Application

The application can be run in multiple ways.

• Double-click the NetZoom Visio Add-in icon on your desktop
• From the Windows Start Menu, select All Programs, and find the NetZoom folder. Within this folder, click NetZoom Visio Add-in to launch the application.
• OR launch the Integrated Mode from within Microsoft Visio, by selecting NetZoom Visio Add-in from the NetZoom Add-ins menu or by launching the RackBuilder template.



Activation

NetZoom Visio Add-in requires activation. When the Add-in is launched, you will be prompted to activate the software. Activation lets you access all services exclusive to NetZoom subscribers, including the NetZoom Device Library and requesting shape requests. Activation also helps prevent piracy.

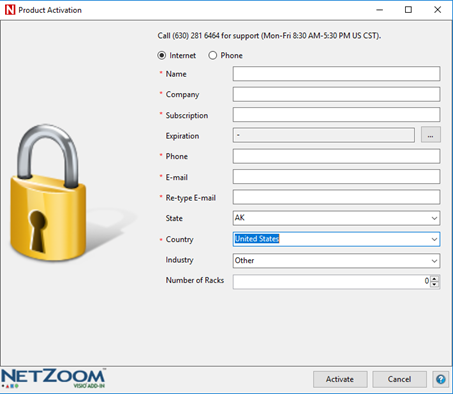

1. Two tabs display the methods for activation. You may either activate By Internet or By Phone.  Make your selection.


2. If you are activating by Internet, enter your information and select Activate. The application will launch when activation is complete.
3. If you are activating by phone, call the number provided to receive your Activation Key.  Once you have received the activation key, proceed to step 4.
4. After receiving your Activation Key, enter it in the space provided and select Activate. The application will launch when activation is complete.



Now You Are Ready to Use the NetZoom Visio Add-in

Congratulations! You have completed the initial setup of the NetZoom Visio Add-in. This ensures the best experience moving forward. The following sections provide detailed information about the Add-in’s interface, including how to use it for common diagramming tasks, how to customize settings and options, and how to operate NetZoom with other applications. In addition, this user guide discusses other advanced topics, helpful FAQs and Troubleshooting.
