Getting Started with the NetZoom SDK



The NetZoom SDK is a set of REST APIs that allows clients to customize their NetZoom application. Using the SDK toolkit, clients can retrieve and set data directly with the NetZoom database or even create customized integrations between NetZoom and other data center applications.

NetZoom itself is created using these same API calls.



Requirements

There are several requirements that must be completed prior to using the NetZoom SDK.

  1. NetZoom must be installed and fully configured on an application server.
  2. Client must purchase a NetZoom SDK license and add it to NetZoom using Administration/Enterprise Configuration/Licenses/Licenses
  3. The NetZoom SDK must be installed using the NetZoom SDK license
  4. A user or service account login for the application server is required



Verifying the NetZoom SDK Installation

To verify that the NetZoom SDK installation was successful, launch the NetZoom SDK URL in a browser. For example: enter https://##NetZoomInstance##/api/SDK.svc in the browser address bar where ##NetZoomInstance## is replaced with the NetZoom application URL.

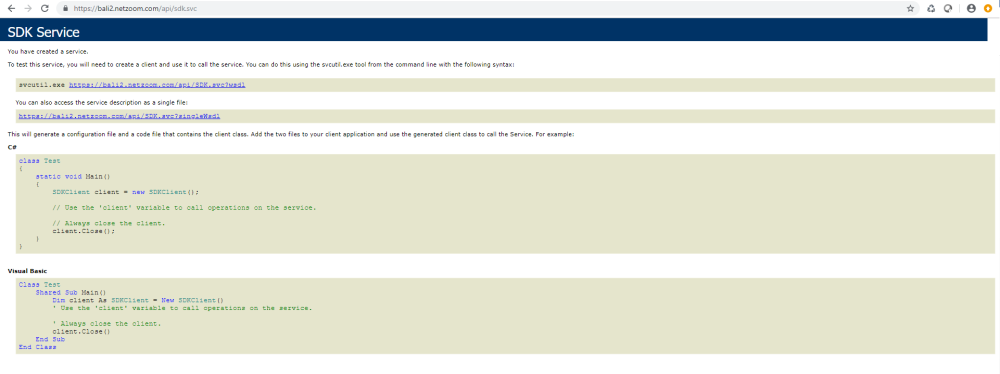

If you can browse the SDK service, you know that the SDK installation was successful. This is how it should look if the installation was successful.





Concepts

Token: NetZoom is a secured application and each call using the NetZoom SDK must also be secured.  NetZoom uses a session-based security Token to ensure the validity and authorization of the API calls.



How to Access the NetZoom API Endpoints

The NetZoom SDK resides on the same application server where NetZoom is installed. In order to access the SDK, a domain login is required for the application server.

A series of steps must be followed when calling a NetZoom API endpoint.

Before making any other request to NetZoom, the Login endpoint must be called to initiate the session and authorize access. The Login endpoint returns a security token. This token is further required to make any other API requests. Once the required NetZoom operations are performed, the session must be terminated using the Logout endpoint.

Following example demonstrates the sequence of calls required to get all the available Sites in NetZoom.

Step 1: Login

Endpoint to Login:  https://##NetZoomInstance##/api/SDK.svc/Login

Input

This end point does not require any input. The class ClientCredentials must be set with the username and password prior to calling Login.

Output

This end point returns a string which is the security token.



Step 2: GetSites

Endpoint to Get Sites: https://##NetZoomInstance##/api/SDK.svc/GetSites

Input

token (string) (Use the security token that is returned from the Login)

Output

List<SiteItem> (List) (List contains all the available Sites)

Output Reference Classes

SiteItem

Name

DataType

Description

ID

Int64

Unique Identifier for site

Name

string

Name of the Sites

Description

string

Description/Notes

Address

string

Address for the Site

Phone

string

Phone Number

URL

string

Web URL

HasBuilding

bool

Does site has buildings

Type

string

Type of Site

TimeZoneOffset

double

Time Zone Offset

AlertCount

int

No of Unattended alerts on Site

Icon

int

Icon ID

weather

NZWeather

weather

timezone

NZTimeZone

timezone

date_format

string

Date Format

Longitude

string

Longitude

Latitude

string

Latitude

LastUpdated

DateTime?

Last Updated



NZWeather

Name

DataType

Description

cityId

int

cityId

temperature

Double

Temperature

humidity

Double

Humidity

pressure

Double

Pressure

weather

string

weather

icon

string

icon



NZTimeZone

Name

DataType

Description

Id

string

Id

Name

string

Name

Offset

double

Offset

BaseOffset

double

BaseOffset

DayLightSavingOffset

double

DayLightSavingOffset

DayLightMonthStart

int

DayLightMonthStart

DayLightDayStart

int

DayLightDayStart

DayLightDayEnd

int

DayLightDayEnd

DayLightMonthEnd

int

DayLightMonthEnd

IsDayLightSaving

bool

IsDayLightSaving



Step 3: Logout

Endpoint to Logout:  https://##NetZoomInstance##/api/SDK.svc/Logout

Input

token (string) (Use the token that is returned from the Login)

Output

This endpoint does not return anything.



First Project: Get Sites using C#

Step 1: Add the service reference

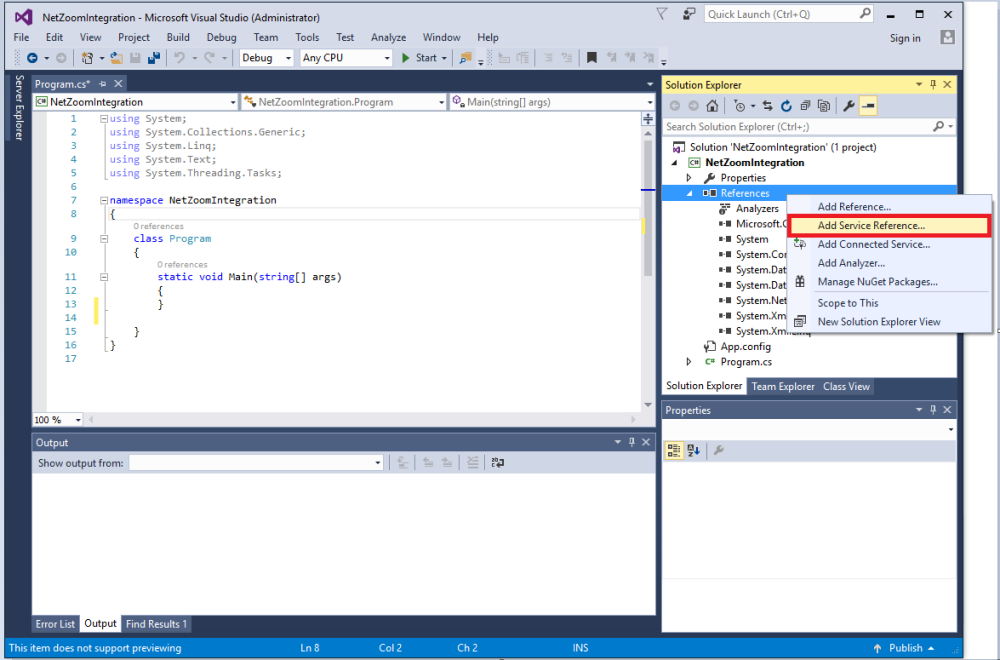

Add the NetZoom SDK service reference to the project in which you want to use the API.

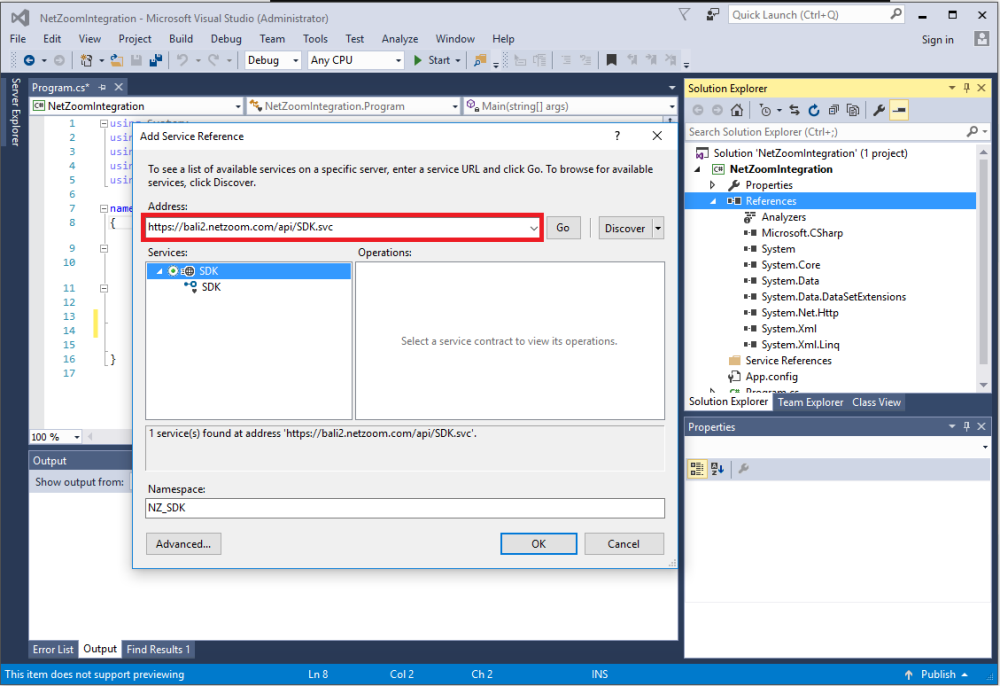

Add the NetZoom SDK Service URL and Name the Service Reference. The URL is the same one you browsed to verify the installation of the SDK: https://##NetZoomInstance##/api/SDK.svc





For this example, the NetZoom Service Reference is named NZ_SDK.



Step 2: Review the endpoints

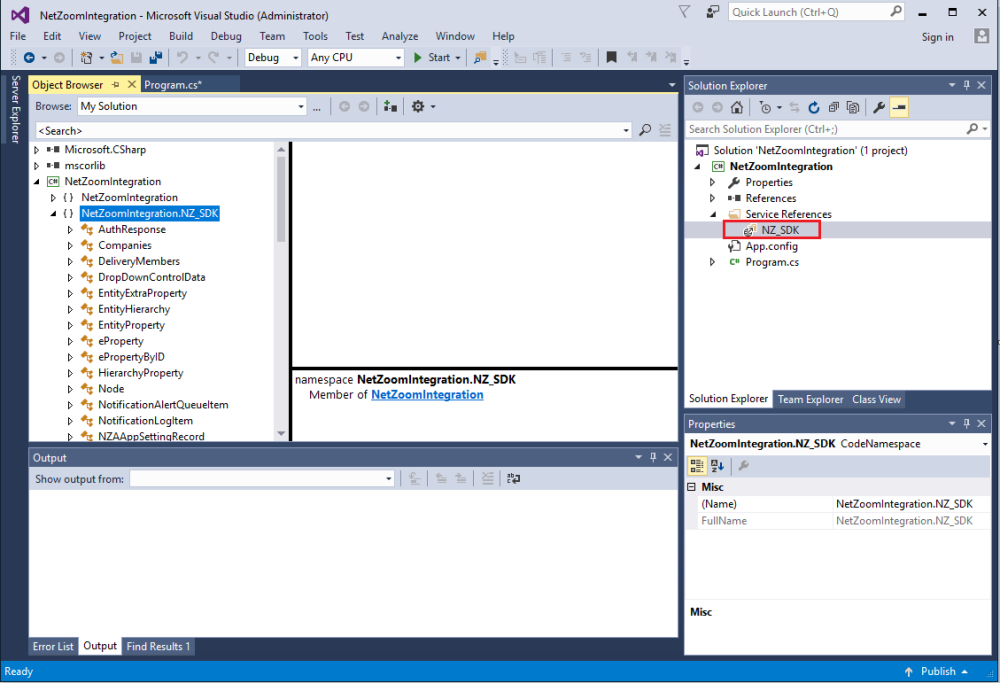

Once the Service Reference is added, you can view all the available Endpoints in the NetZoom SDK.





Step 3: Call the endpoints needed by your project

Now it is time to use the API calls in your project. Remember to start by calling Login and end by calling Logout.

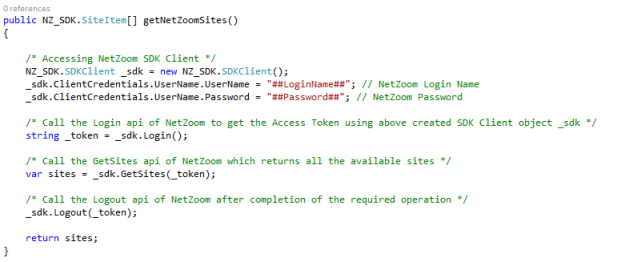

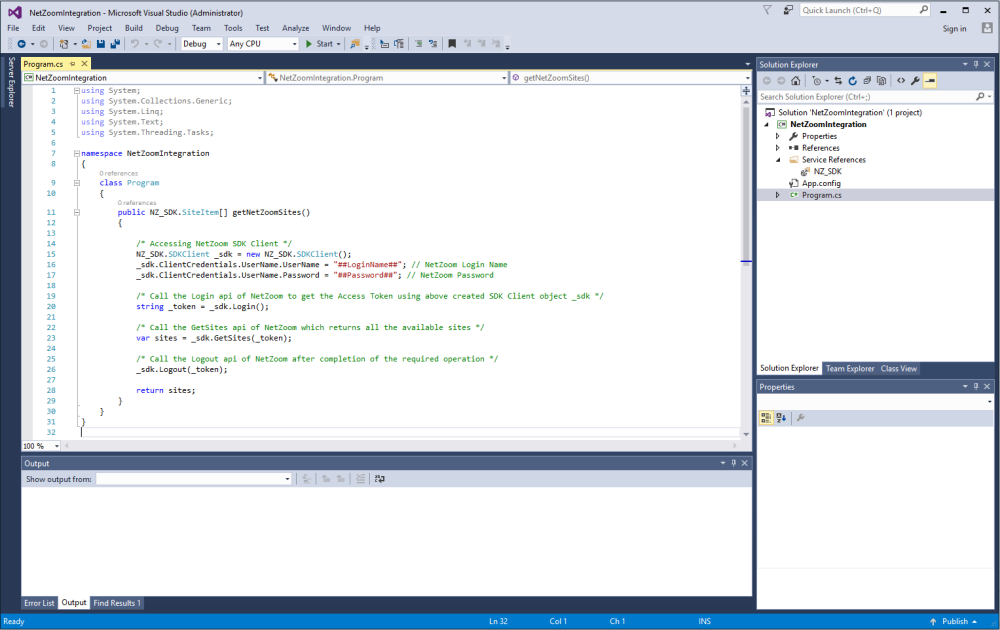

Let us try to return all the available Sites in NetZoom. Type in the following commands and execute your project to retrieve all of the Sites defined in your NetZoom application.







Congratulations!

Now that you have learned the basic usage of the NetZoom SDK and completed your first project, you may like to explore the full list of available endpoints and reference classes. Each of the APIs are fully explained in the application at

Feature Path: Administration/Tools/SDK/API Tutorial


Last Updated: Thursday, August 13, 2020
